SALIENT FEATURES

• Feed material size –375 mm maximum stage
• Ideal to use at primary stage or secondary stage.
• Interchangeable jaw plates available to produce finer material.
• Crushed output size – 0 to 90 mm.

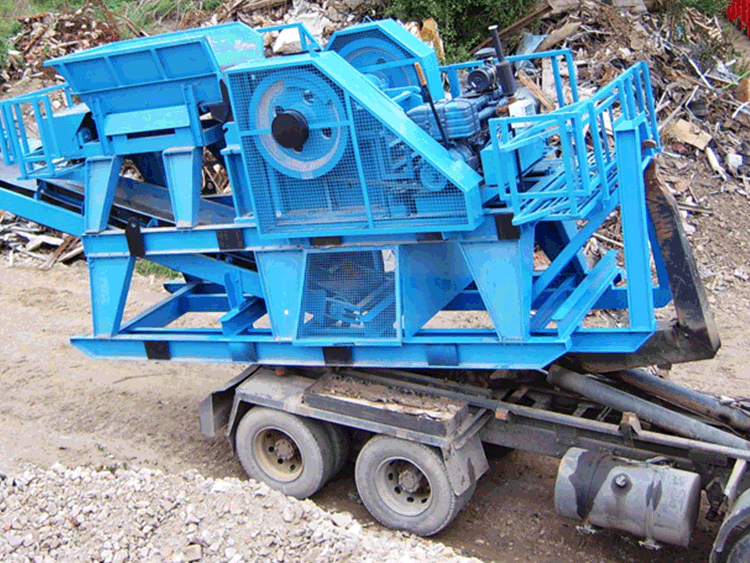

• Lifting system on skid for easy shifting.

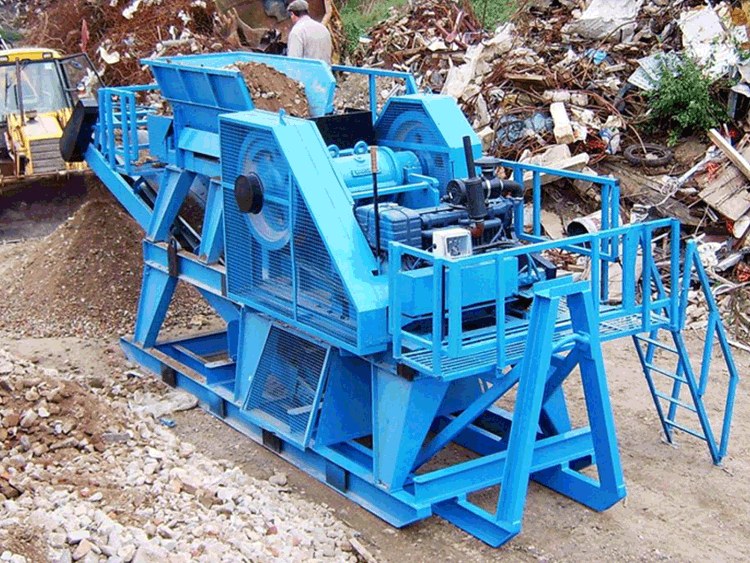

• Crusher size 30” x 15” (762 mm x 381 mm) fitted with reciprocating feeder 30” x 72” along 750mm width conveyor system.
• Optional Drives are available i.e. with HA 494 Aircooled Diesel Engineer & also Electrical Driven power required is 70 HP (55KW) the crusher is powered by Electrical or by Diesel engine while the feeder & conveyor are hydraulically driven.
• Suitable to shift any where without any civil work, installation is easy at site within an hour, ready to use.
• Total weight of machine is 14000 kgs.
