Vibrating Screens
TECHNICAL SPECIFICATIONS
Marsman Vibrating screens are designed and manufactured with modern technology on highly sophisticated machines and equipments to produce maximum output with minimum screening area and power consumption.
SALIENT FEATURES
- Excellent accuracy for separation.
- Maintenance free.
- Minimum wear rate per ton.
- Perfect gradation of material.
- Minimum Power Required.
SCREEN DETAILS

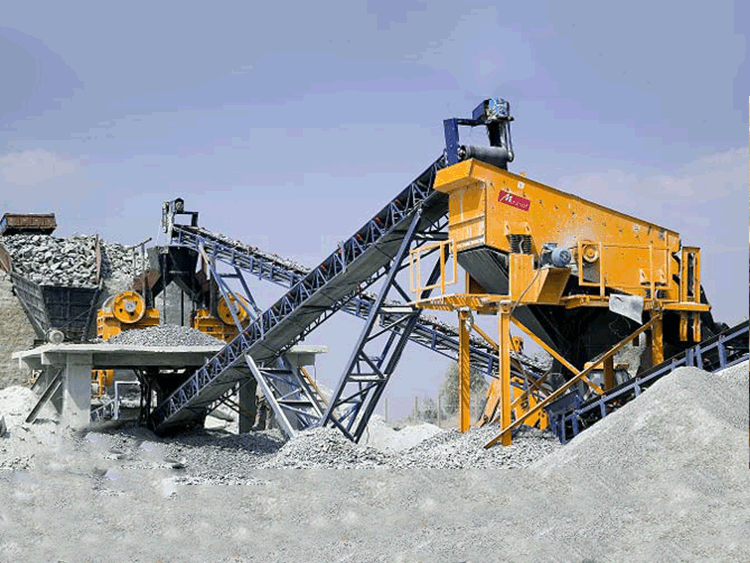

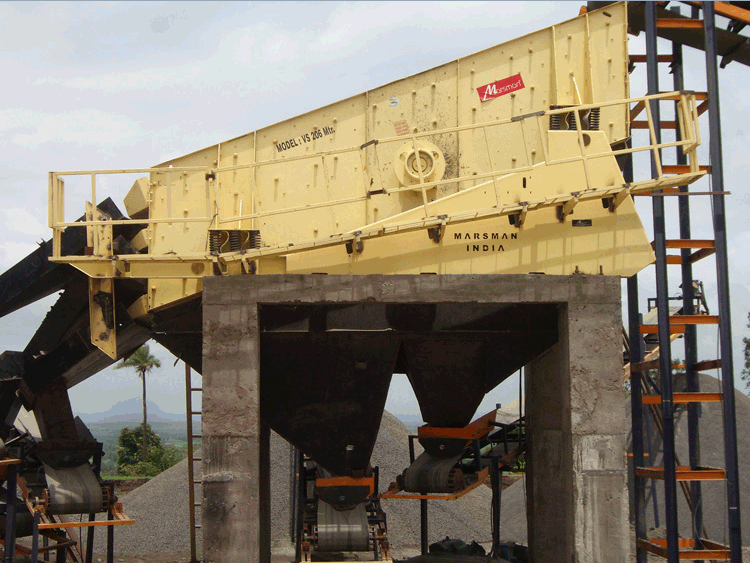

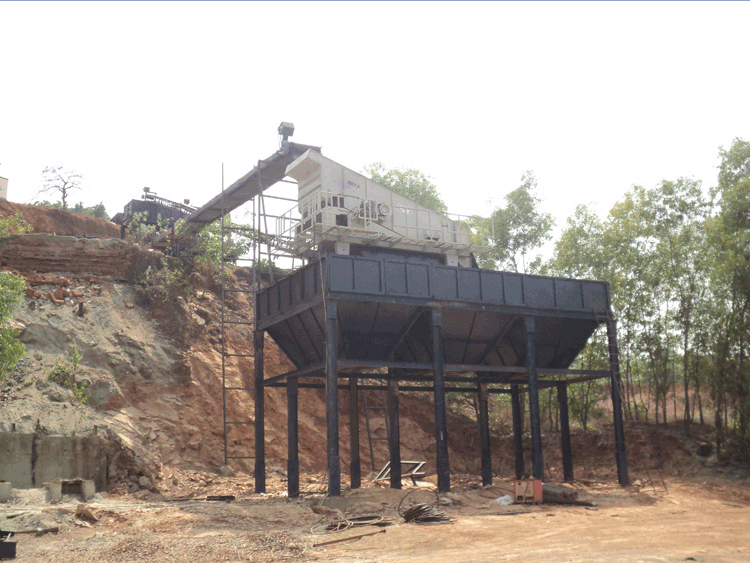

“MARSMAN” vibrating screens are designed to make separation / filtration of crushed material from fine dust to oversized. The screen frame, a bolted & welded steel structure, accommodates the screen mesh & the drive unit. The screen is designed by the assembly of an eccentric shaft, made out of alloy steel & two no. of heavy duty double spherical bearings with dust & water tights seals for efficient operations & low maintenance.
The “MARSMAN” screens are driven by electric motor provided with the screen. The screen frame rests flexible on four spring units provided on support construction, so as the eliminate jerks to the supporting systems and to vibrate freely in a linear motion.
The angle of the throw screening action is adjusted with such design that it provides the same vibration to all parts of the screen in order to obtain proper filtration/ screening of crushed material of different sizes simultaneously while separating oversized product.
The action of “MARSMAN” vibrating screen is independent of burden of material. This is considered to be most salient features which results in a very high ratio of through output per unit of screen area.
“MARSMAN” vibrating screen are available in different models and sizes with different capacities to suit the requirement of individual customers.
VIBRATORY MOTOR FEEDER SPECIFICATIONS
MODEL NO. | LENGTH X WIDTH (IN MM) | NO OF DECKS | MOTOR HP | SCREENING CAPACITY (TPH) |
---|---|---|---|---|
VS 84 | 2745 X 1220 | 1-3 | 7.5 | 15-20 |
VS 104 | 3050 X 1220 | 1-3 | 10 | 20-30 |
VS 124 | 3960 X 1220 | 1-4 | 12.5 | 30-40 |
VS 145 | 4760 X 1525 | 1-4 | 15/20 | 50-80 |
VS 165 | 5375 X 1525 | 1-4 | 15/20 | 80-125 |
VS 185 | 6047 X 1525 | 1-4 | 20/25 | 125-150 |
VS 206 | 6098 X 1825 | 1-4 | 25/30 | 150-200 |
VS 208 | 6098 X 2023 | 1-4 | 30/35 | 200-250 |
SCALPING SCREEN SPECIFICATIONS
MODEL NO. | LENGTH X WIDTH (IN MM) | NO OF DECKS | MOTOR HP | SCREENING CAPACITY (TPH) |
---|---|---|---|---|
SC 625 | 1830 X 765 | 1 | 3+3 | 10-60 |
SC 1025 | 3050 X 765 | 1 | 3+3 | 10-70 |
