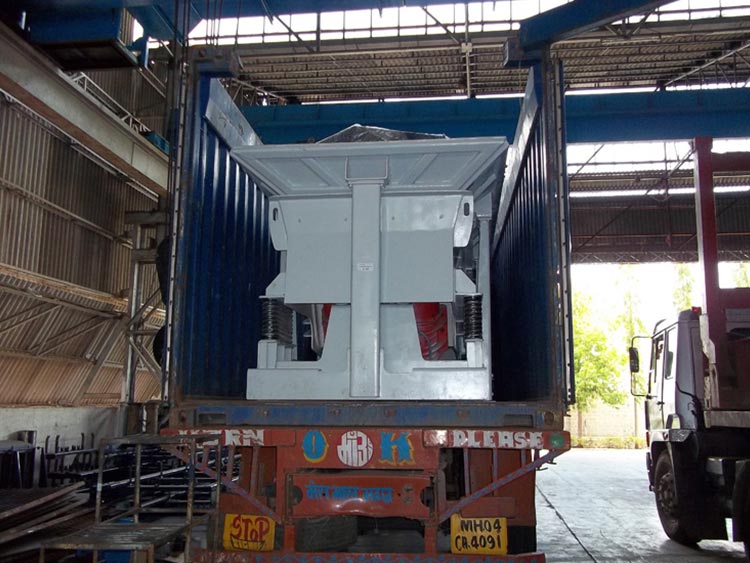

Vibrating & Reciprocating
FeedersVibrating & Reciprocating Feeders
TECHNICAL SPECIFICATIONS

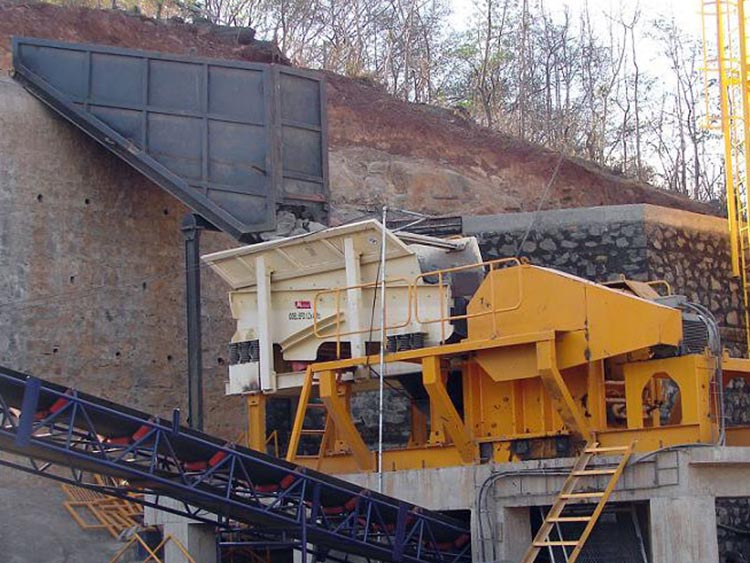

The vibrating action of the feeder conveys material while separating loose fines. This provides smooth, controlled feed rates to maximize capacity of the plant. The fines drop to the bottom of the feed material and are passed through the grizzly section. Gizzly bars are tapered to improve scalping action. Bar spacing is adjusted for controlled fines removal. Heavy duty spring suspension provides protection and cushioning impact and vibration .
SALIENT FEATURES
- Increases productivity
- Sorts out wastages & fines
- Increases efficiency of machine at primary or secondary stage crushers
- Continuous feeding of material
VIBRATORY MOTOR FEEDER SPECIFICATIONS
| MODEL NO. | SIZES | CAPACITY TONES/HOUR | MOTOR HP |
|---|---|---|---|
| EFD 752 | 0.75 MTR X 2 MTR | 40-80 | 0.57 KW (2 nos.) |
| EFD 103 | 1 MTR X 3 MTR | 60-125 | 1 KW (2 nos.) |
| EFD 124 | 1.2 MTR X 4 MTR | 125-200 | 3.3 KW (2 nos.) |
| EFD 144 | 1.4 MTR X 4 MTR | 200-350 | 3.3 KW (2 nos.) |
RECIPROCATING FEEDER SPECIFICATIONS
| MODEL NO. | SIZES | CAPACITY TONES/HOUR | MOTOR HP |
|---|---|---|---|
| RFD 2060 | 20" x 60" | 10-25 | 3 |
| RFD 3072 | 30" x 72" | 25-60 | 5 |
