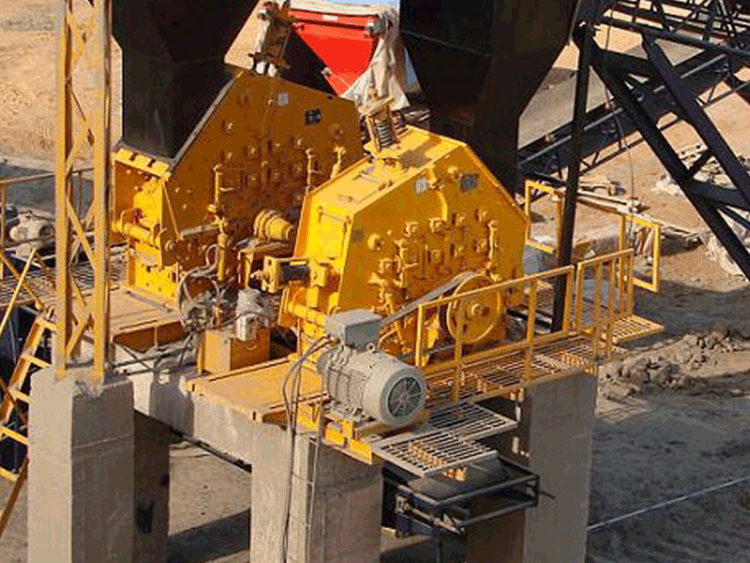

Secondary HSI Impact Crushers

TECHNICAL SPECIFICATIONS

The MARSMAN* HSI (Horizontal Shaft Impact Crusher) is used to produce high quality cubical shape stone aggregate material. They fetch a high ratio of reduction, direct control of product gradation and excellent cubical product shape. Available in three models with capacity 50, 100, 200 tons per hour

Marsman

SALIENT FEATURES

  • Rolled and Electro welded Steel Bed frame, fitted with one tiltable lid, being the opening device ratchet lever operated type, provides an easy and comfortable inspection and servicing, Likewise, the front area of the manhole lid is tiltable to have access to the feed chamber thus there is no need to dismantle the loading hopper.
  • Rolled and Electro welded Rotor made out in a single part and equipped with grinding plates, which impact the material against the suspended anvils.
  • The entire inner part, touching the material to be crushed, is protected by means of a special antiwear steel plates, interchangeable, which may be fixed & dismantled very easily.
  • The two oscillating impact anvils, carrying their bars, may be regulated and fixed mechanically, depending on the adjustment which may be regulated and fixed mechanically, depending on the adjustment which may be needed. The suspension is elastic through steel springs.
  • Side windows with a manual opening operated for inspection of the interior of machine. Impact bars of the special antiwear alloy steel, which can be replaced very easily
  • Impact anvils, also made of special antiwear steel, protected by exchangeable thick bars made of special steel as well.
  • High Resistant, alloyed forged steel shaft, fixed to the rotor by means of accurate conical sleeves, assuring the necessary adjustment and easily dismantled. Special bearing housing made of cast steel, with spherical roller bearings, protected against dust by seal labyrinths and bearings lubricated by grease.

SPECIFICATIONS

Model A B C D E F G H I J K L M N O P R S T U DP
HSI-3820 780 1035 1845 2190 945 1545 805 550 660 265 375 150 630 885 440 755 730 710 400 130 600
HSI-4024 900 1130 2150 2450 1085 1700 890 750 780 310 435 200 685 830 500 835 815 815 460 120 600
HSI-4032 910 1170 2078 2575 1083 1807 811 669 685 430 535 160 745 1005 619 915 896 710 569 130 880
HSI-5040 950 1210 2100 2595 1090 1840 895 720 690 450 538 220 780 1018 625 932 905 725 575 1430 900

DIMENSION

MODEL MOUTH PRODUCTION MAX. FEED MOTOR SHAFT SPEED WEIGHT GROOVED PULLEY
DIMENSION   SIZES POWER     OF MOTOR
MM T/H MM HP R.P.M. Kgs. DIA.
HSI-3820 660X610 40 100-125 70 500-800 4500 4-G-C-SEC-600
HSI-4024 775X620 80 100-150 100 475-765 6500 4-G-C-SEC-600
HSI-4032 928X630 160 100-175 150 400-650 9500 4-G-C-SEC-880
HSI-5040 1150X700 200 100-200 200 400-600 11000 4-G-C-SEC-880
